MCR-102-A

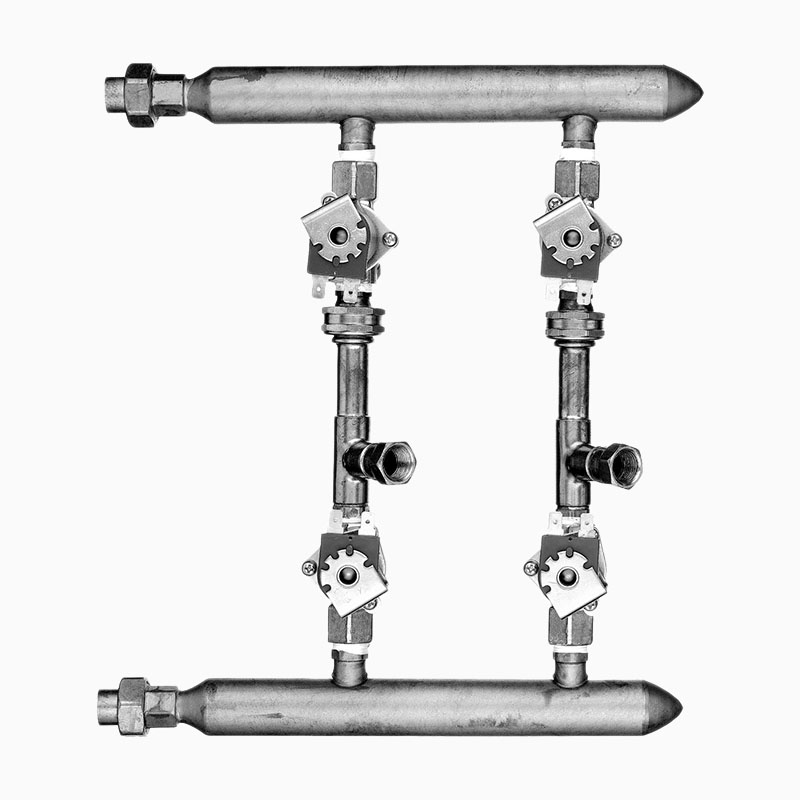

PWT System 2-Line Mixing Manifold

The Sloan MCR-102-A Two-Line Mixing Manifold is used with the Sloan PWT System to manage water usage and activations. The MCR-102-A manifold contains four electronically activated solenoids used to su

Features

PWT Two Line Mixing Manifold

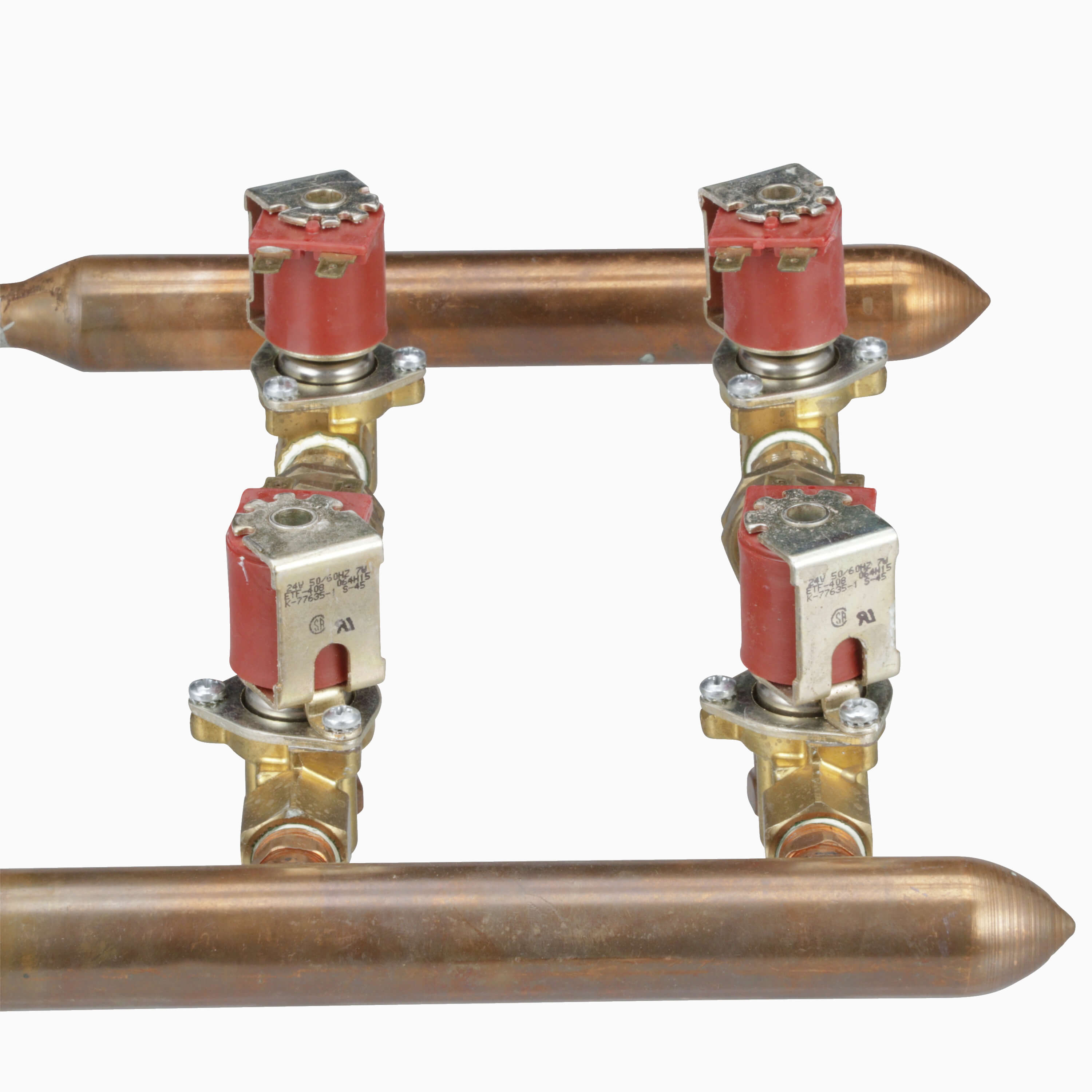

  • Manifold containing four electronically activated solenoids used to supply hot, cold and mixed water to two lavatory fixtures

Plumbing Specifications

  • 1/2 Inch Pipe Copper Solder Unions at water inlets
  • Soft Nose Union between solenoids
  • Includes two fitting kits each containing the following:
  • Two 3/8 NPT to 3/8 Tube
  • One 0.5 gpm Flow Orifice
  • One 3/8 NPT to 3/8 NPT Coupling
  • 20 feet 3/8 OD Nylon Tubing
  • Solenoid Specifications
  • 24 VAC – 50/60 Hz Operating Voltage
  • Current: In Rush 12 VA (500mA); Holding 4.63 VA (193 mA)
  • Power Consumption: 7 Watts
  • 160 Fahrenheit Maximum water temperature
  • Brass body with integral ‘Y’ strainer (80 Mesh)
  • Stainless Steel Valve Seat
  • Includes 15’ cable w/ 6 position, 4 pin RJ-11 connector to connect to Sloan PWT MCR-Series Controller

Accessories

  • Solenoid cable length can be increased to a maximum overall length of 200 feet with additional PWT extension cord kits
  • ETF-1003-36 3’ single wire extension cord kit
  • ETF-1003-108 9’ single wire extension cord kit
  • ETF-1003-240 20’ Single wire extension cord kit
  • ETF-1003-600 50’ single wire extension cord kit
